0.5-10t Double Beam Crane Tower Seagull/OEM Heavy Duty Trolley for Hoist
Product Details:
Place of Origin: CHINA
Brand Name: SEAGULL
Certification: GS/CE
Model Number: TP
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: Negotiation
Packaging Details: Packed in carton firstly,and then reinforced with steel case for outer packing
Delivery Time: 30 working days after received your payment
Supply Ability: 150000 pcs per year
Place of Origin: CHINA
Brand Name: SEAGULL
Certification: GS/CE
Model Number: TP
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: Negotiation
Packaging Details: Packed in carton firstly,and then reinforced with steel case for outer packing
Delivery Time: 30 working days after received your payment
Supply Ability: 150000 pcs per year
5.0
like
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.

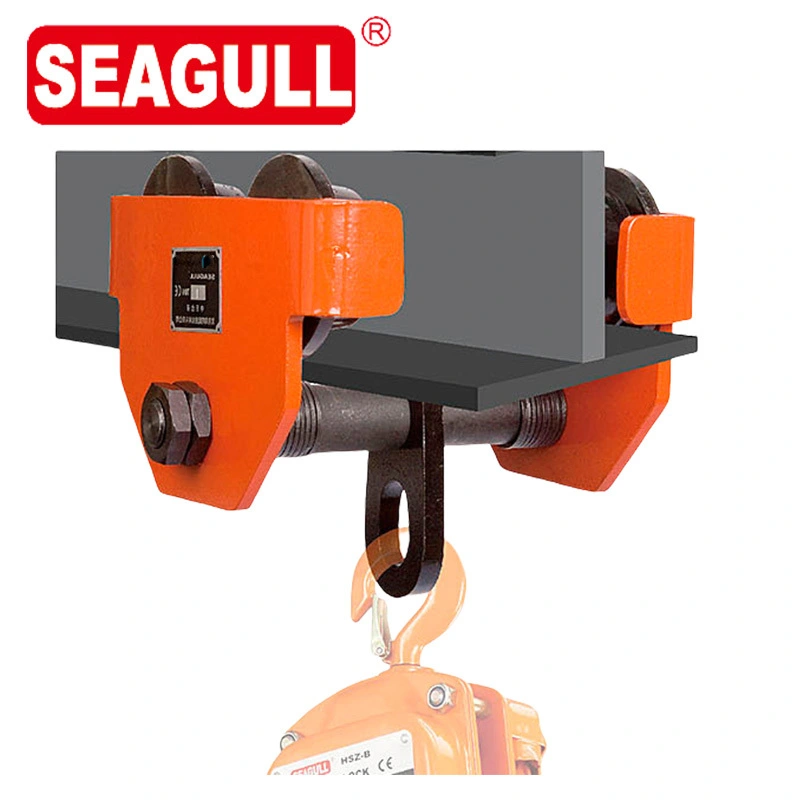

CE Certified Heavy Duty Plain Trolley with Anti-Collision
PRODUCT FEATURES:
Core Advantage:
Compact Design: Low headroom for space efficiency.
Versatile Compatibility: Adjustable to fit I-beams (INP, IPE, IPB) with widths of 50-220 mm.
Precision Control: Counter-threaded bolt for accurate beam adjustment.
Stable Load Handling: Centered suspension eliminates side movement; encapsulated ball bearings ensure smooth operation.
Continuous Adjustment: Lower flange trolley adapts seamlessly as a push trolley.
Capacity Range: 0.5-5 tons (test load up to 1.5x rated load).
Lightweight & Durable: Models weigh 7-38 kg, optimized for ease of use.
PRODUCT DETAILS:
TECHNICAL PARAMETER:
![0.5-10t Double Beam Crane Tower Seagull/OEM Heavy Duty Trolley for Hoist 12]()
| Model | 0.5t | 1t | 2t | 3t | 5t |
| Rated capacity(T) | 0.5 | 1 | 2 | 3 | 5 |
| Tested load(T) | 6.25 | 12.5 | 25 | 37.5 | 62.5 |
| Running height(m) | / | / | / | / | / |
| Chain pull to lift full load(N) | / | / | / | / | / |
| Min radius of curve(m) | 0.9 | 1 | 1.2 | 1.3 | 1.4 |
| Dimensions(mm) A Pylon Lengthen pylon B C E F K L | 292 377 225 173 33 ≈3 25 30 | 300 385 252 188 31 ≈3 30 35 | 310 395 300 226 32 ≈3 40 47 | 324 409 360 289 46 ≈3 48 58 | 329 414 392 313 47 ≈3 60 70 |
| Adjustable beam M Pylon Lengthen pylon | 50-220 160-305 | 58-220 160-305 | 66-220 160-305 | 74-220 160-305 | 90-220 160-305 |
| Extra weight per meter of extra lift(kg) | / | / | / | / | / |
| Net weight (kg) Pylon Lengthen pylon | 8.2 8.6 | 10.3 10.8 | 17.5 18.3 | 30.7 31.9 | 42.4 43.9 |
PRODUCTION LINE:
PACKING:
Company Profile
Since 1986, Changshu Seagull Crane&Hoist Machinery Co., Ltd. has been at the forefront of manufacturing
premier lifting tools and equipment. Our extensive portfolio includes hand chain hoists, lever hoists, electric
hoists, and lifting clamps, all crafted to perfection. Certified with ISO9001:2015 and TUV CE/GS, our products
are synonymous with quality and reliability, serving global markets such as the USA, Germany, and Japan. A
proud OEM partner for leading international brands, we export 95% of our products globally. Our commitment
to advanced testing and stringent quality control ensures unmatched performance. With over half our clientele maintaining
premier lifting tools and equipment. Our extensive portfolio includes hand chain hoists, lever hoists, electric
hoists, and lifting clamps, all crafted to perfection. Certified with ISO9001:2015 and TUV CE/GS, our products
are synonymous with quality and reliability, serving global markets such as the USA, Germany, and Japan. A
proud OEM partner for leading international brands, we export 95% of our products globally. Our commitment
to advanced testing and stringent quality control ensures unmatched performance. With over half our clientele maintaining
a decade-long partnership, we are celebrated for our steadfast quality and exceptional service.
