0.75t-6t Seagull/OEM Double Beam Crane Packed in Carton and Pallet Lever Block
The lever block has load control with a mechanical brake, hardened steelhooks with latches.
Product Details:
Place of Origin: CHINA
Brand Name: SEAGULL
Certification: GS/CE
Model Number: HSH-C
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: Negotiation
Packaging Details: Packed in carton firstly,and then reinforced with steel case for outer packing
Delivery Time: 30 working days after received your payment
Supply Ability: 150000 pcs per year
5.0
like
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
0.75-6T Lever Hoist/Lever Block With CE/GS certificate
PRODUCT FEATURES:
1.Precision Engineering
0.75T-6T SWL capacity with 4:1 design factor
T80-grade alloy chains, 8% elongation resistance
Advanced Safety Systems
Dual-certified braking: EN 13157-compliant double-pawl mechanism
Forged hooks (150% proof load tested)
Ergonomic Performance
Low-effort operation: 3.5kg hand pull force at max capacity
Sealed precision bearings reduce 40% friction loss
Industrial-Grade Durability
CNC-machined alloy steel gears (HRC 45-50 hardness)
Triple-layer anti-corrosion coating (100+μm total thickness)
Quality Assurance
EN 13889:2003 certified 400% static / 150% dynamic load testing
Batch-tracked production with MTC certification
PRODUCT DETAILS:
TECHNICAL PARAMETER:
![0.75t-6t Seagull/OEM Double Beam Crane Packed in Carton and Pallet Lever Block 11]()
| HSH-C LEVER BLOCKS | |||||
| Model | HSH-V7.5 | HSH-V10 | HSH-V15 | HSH-V30 | HSH-V60 |
| Rated load (T) | 0.75 | 1 | 1.5 | 3 | 6 |
| Test load(T) | 1.125 | 1.5 | 2.25 | 4.5 | 9 |
| Standard lif(m) | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| Min.distance between two hooks(mm) | 295 | 310 | 335 | 450 | 550 |
| Efforts required at capacity (N) | 140 | 186 | 234 | 363 | 370 |
| No.of load chains | 1 | 1 | 1 | 1 | 2 |
| Dlameter of load chain(mm) | 6 | 6 | 7.1 | 10 | 10 |
| Dimensions(mm) A B C D E | 148 128 295 256 26 | 148 128 310 256 26 | 163 148 335 368 30 | 191 181 405 368 34 | 191 244 550 368 47 |
| Net weight(kg) | 7.3 | 7.8 | 10.4 | 17.2 | 26 |

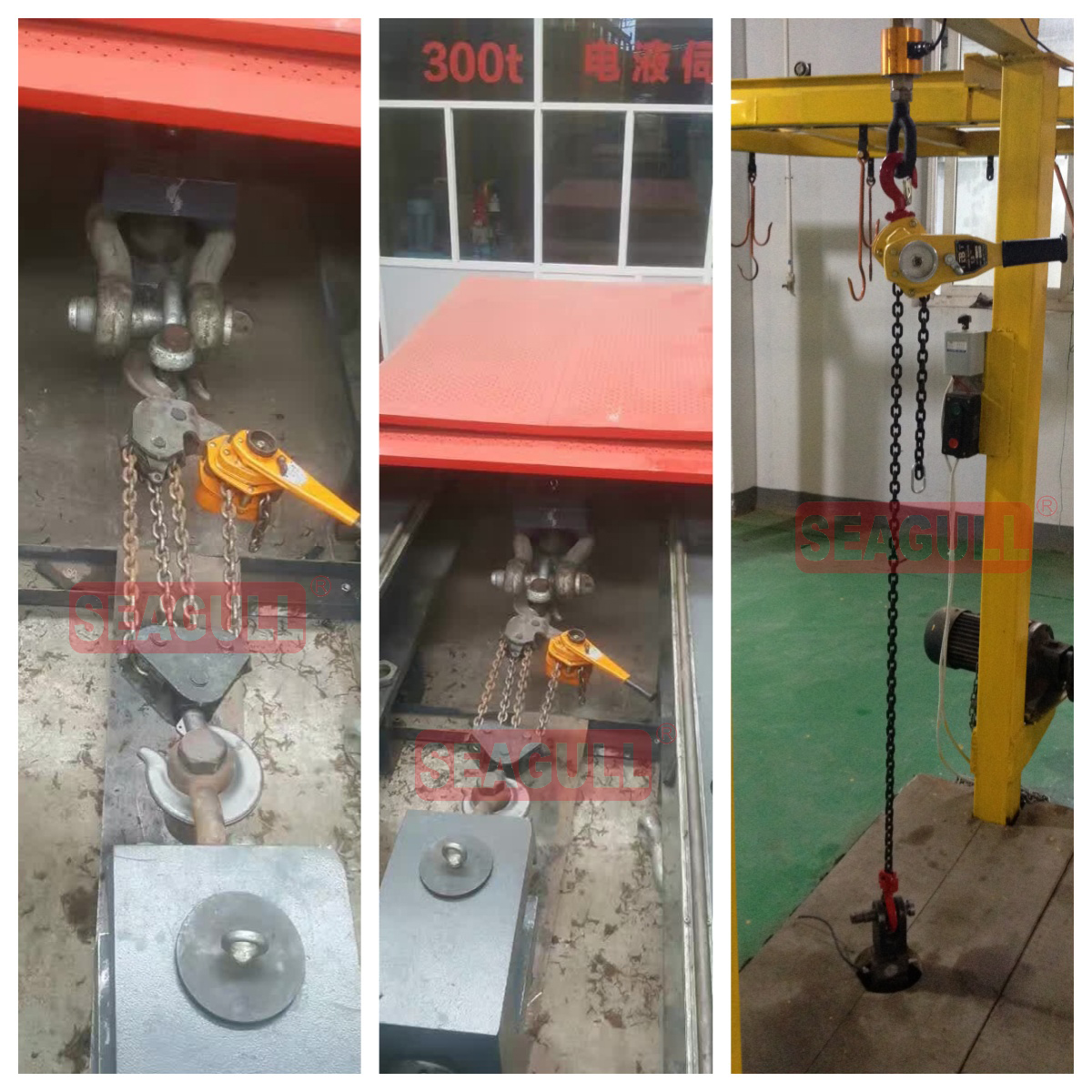

TESTING:

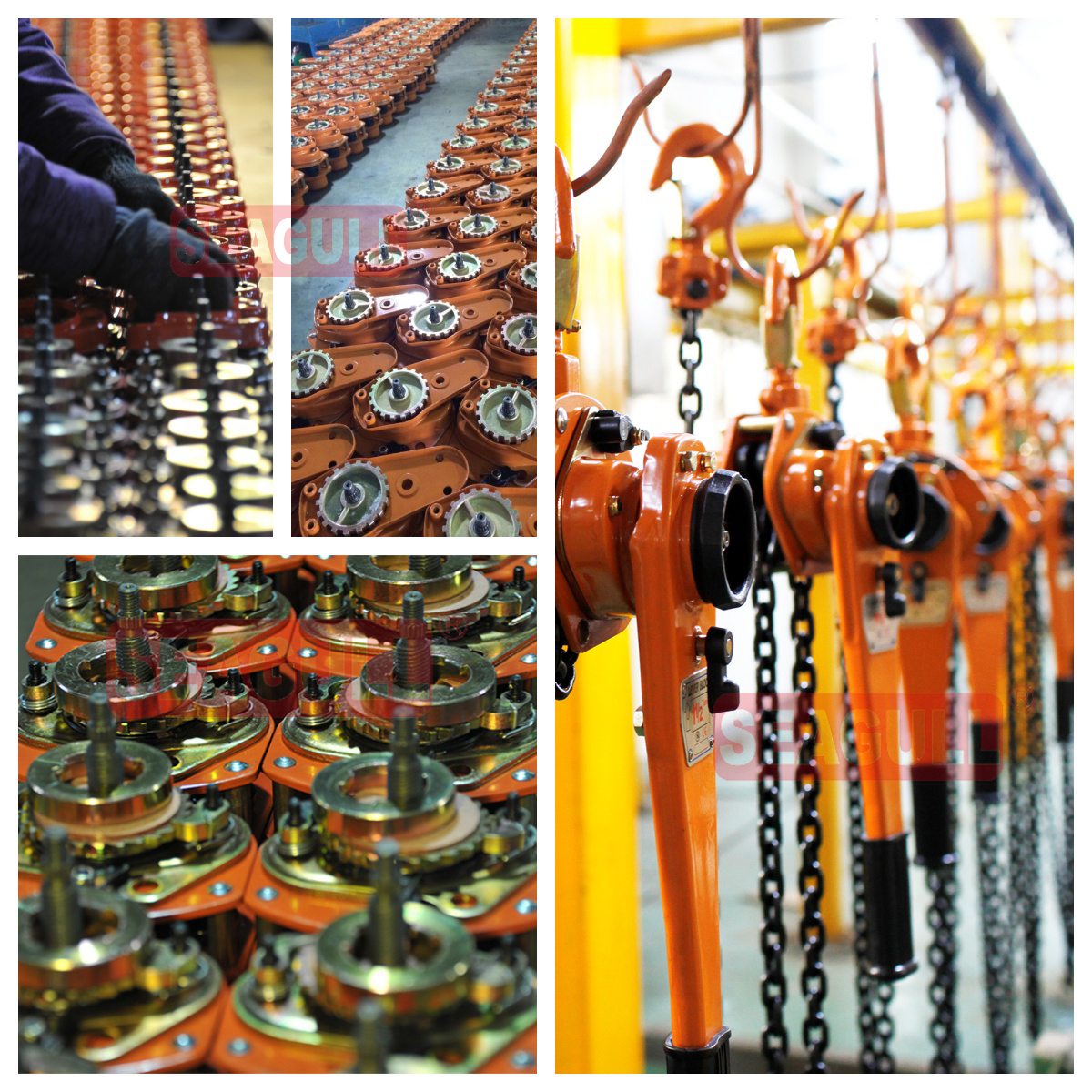

PRODUCTION LINE:
PACKING:
Company Profile
Since 1986, Changshu Seagull Crane&Hoist Machinery Co., Ltd. has been at the forefront of manufacturing
premier lifting tools and equipment. Our extensive portfolio includes hand chain hoists, lever hoists, electric
hoists, and lifting clamps, all crafted to perfection. Certified with ISO9001:2015 and TUV CE/GS, our products
are synonymous with quality and reliability, serving global markets such as the USA, Germany, and Japan. A
proud OEM partner for leading international brands, we export 95% of our products globally. Our commitment
to advanced testing and stringent quality control ensures unmatched performance. With over half our clientele maintaining
premier lifting tools and equipment. Our extensive portfolio includes hand chain hoists, lever hoists, electric
hoists, and lifting clamps, all crafted to perfection. Certified with ISO9001:2015 and TUV CE/GS, our products
are synonymous with quality and reliability, serving global markets such as the USA, Germany, and Japan. A
proud OEM partner for leading international brands, we export 95% of our products globally. Our commitment
to advanced testing and stringent quality control ensures unmatched performance. With over half our clientele maintaining
a decade-long partnership, we are celebrated for our steadfast quality and exceptional service.
SEAGULL stands as your steadfast partner in delivering innovative and reliable lifting solutions tailored to
your needs.
SEAGULL stands as your steadfast partner in delivering innovative and reliable lifting solutions tailored to
your needs.
PRODUCTION EQUIPMENT:
QUALITY CONTROL:
FAQ
About US
Q1 Manufacturer or Trading Company?
We are Manufacturer and trading company, based in ChangshuCity,Jiangsu Province. Focus: high-quality, safe lifting solutions.
Q2 Certifications?
ISO9001, CE, GS, ASME compliant. Certificates available upon request.
Q3 OEM/ODM?
Yes. Custom colors, logos, manuals,packaging.
Q4 Advantages?
Quality products, wide range, customization, competitive pricing, excellent after-sales service.
Products
Q1 Main Products?
Manual Chain Hoists, Electric Hoists, Electric Trolleys, Beam Trolleys, Beam Clamps, Lifting Clamps, Snatch Blocks, Permanent Magnet Lifters,Mechanical Jacks, Manual Winches, Webbing Slings, etc.
Q2 Manual Chain Hoist Capacity?
0.25 tons - 50 tons. Custom options available.
Q3 Chain Material?
High-strength alloy steel, heat-treated, EN818-7 compliant.
Q4 Electric Hoist Voltage/Control?
220V/380V/415V/440V,50Hz/60Hz. Hand & remote control options.
Q5 Choosing the Right Tool?
Consider load, height, environment, frequency, safety. Contact sales for assistance.
Q6 Product Catalog?
Request via contact form.
Orders&Payment
Q1 MOQ?
Varies. Different products with different MOQ. Please contact us for details.
Q2 Payment Methods?
T/T or L/C in USD/RMB/EUR.
Q3 Delivery Time?
30-60 days, but negotiable for urgent order.
Q4 Trade Terms?
FOB, CIF, CFR, negotiable
After-Sales Service
Q1 Warranty?
1 or 2 years warranty depends on different products, against defects (non-human caused).
Q2 After-Sales Support?
Contact sales representative, email
Q3 Technical Support?
Installation, debugging, maintenance assistance available.
Other
Q1 Samples?
Available on request. Fees may apply.
Q2 Become an Agent?
Contact sales team for details.
Q1 Manufacturer or Trading Company?
We are Manufacturer and trading company, based in ChangshuCity,Jiangsu Province. Focus: high-quality, safe lifting solutions.
Q2 Certifications?
ISO9001, CE, GS, ASME compliant. Certificates available upon request.
Q3 OEM/ODM?
Yes. Custom colors, logos, manuals,packaging.
Q4 Advantages?
Quality products, wide range, customization, competitive pricing, excellent after-sales service.
Products
Q1 Main Products?
Manual Chain Hoists, Electric Hoists, Electric Trolleys, Beam Trolleys, Beam Clamps, Lifting Clamps, Snatch Blocks, Permanent Magnet Lifters,Mechanical Jacks, Manual Winches, Webbing Slings, etc.
Q2 Manual Chain Hoist Capacity?
0.25 tons - 50 tons. Custom options available.
Q3 Chain Material?
High-strength alloy steel, heat-treated, EN818-7 compliant.
Q4 Electric Hoist Voltage/Control?
220V/380V/415V/440V,50Hz/60Hz. Hand & remote control options.
Q5 Choosing the Right Tool?
Consider load, height, environment, frequency, safety. Contact sales for assistance.
Q6 Product Catalog?
Request via contact form.
Orders&Payment
Q1 MOQ?
Varies. Different products with different MOQ. Please contact us for details.
Q2 Payment Methods?
T/T or L/C in USD/RMB/EUR.
Q3 Delivery Time?
30-60 days, but negotiable for urgent order.
Q4 Trade Terms?
FOB, CIF, CFR, negotiable
After-Sales Service
Q1 Warranty?
1 or 2 years warranty depends on different products, against defects (non-human caused).
Q2 After-Sales Support?
Contact sales representative, email
Q3 Technical Support?
Installation, debugging, maintenance assistance available.
Other
Q1 Samples?
Available on request. Fees may apply.
Q2 Become an Agent?
Contact sales team for details.
