Heavy Load 0.8Ton to16 Ton Automatic Adjustable Girder Vertical Plate Clamp
Product Details:
Place of Origin: CHINA
Brand Name: SEAGULL
Certification: GS/CE
Model Number: DSQA
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: Negotiation
Packaging Details: Packed in carton firstly,and then reinforced with steel case for outer packing
Delivery Time: 30 working days after received your payment
Supply Ability: 150000 pcs per year

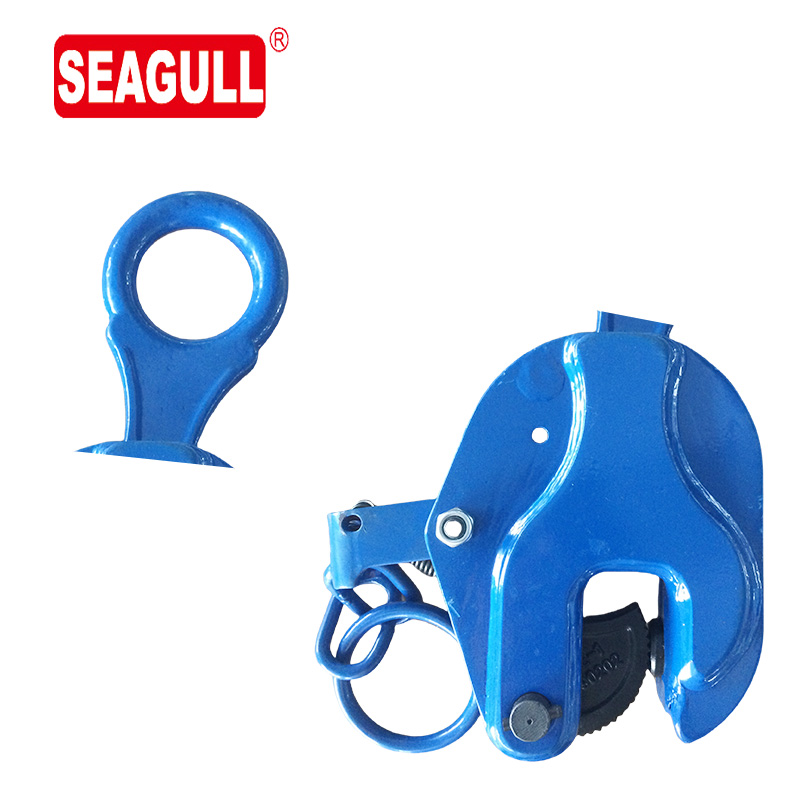

CE Certified Heavy-Duty DSQA Steel China Heavy Plate Lifting Clamp
Key Features
1.Standard design clamp for vertical lifting of steel plates and steel structures." The spring-loaded tightening lock mechanism assures a positive initial clamping force.
2.Clamps are equipped with a safety mechanism, ensuring the clamp does not slip when lifting force is applied and when load is being lowered.
3. High-frequency quenching of die-forged special alloy steels gives greater durability to the cam.
4.NB: The plate surface of the material must have a hardness lever below HRC30/Brinell 300
INSPECTION, CARE & USE
DO NOT side load clamp more than 15°for side loading DO NOT lift plates with a temperature greater than100ºC DO NOT use to lift stainless steel, lead or copper.
DO NOT use on a double, triple, or quad sling. When using two clamps to lift a steel plate, a lifting beam must be used between the two clamps, so the clamps operate in a vertical position.
| Model | DSQK-0.8 | DSQA-1 | DSQA-2 | DSQA-3 | DSQA-5 | DSQA-8 | DSQA-10 | DSQA-12 | DSQA-16 |
| Rated capacity(T) | 0.8 | 1.0 | 2.0 | 3.0 | 5.0 | 8.0 | 10.0 | 12.0 | 16.0 |
| Test load | 1.6 | 2.0 | 4.0 | 6.0 | 10.0 | 16.0 | 20.0 | 24.0 | 32.0 |
| Jaw opening(mm) | 0-16 | 0-22 | 0-30 | 0-40 | 0-50 | 0-60 | 0-80 | 25-90 | 60-125 |
| Net Weight(kg) | 2.8 | 3.6 | 5.5 | 10 | 17 | 26 | 32 | 48 |

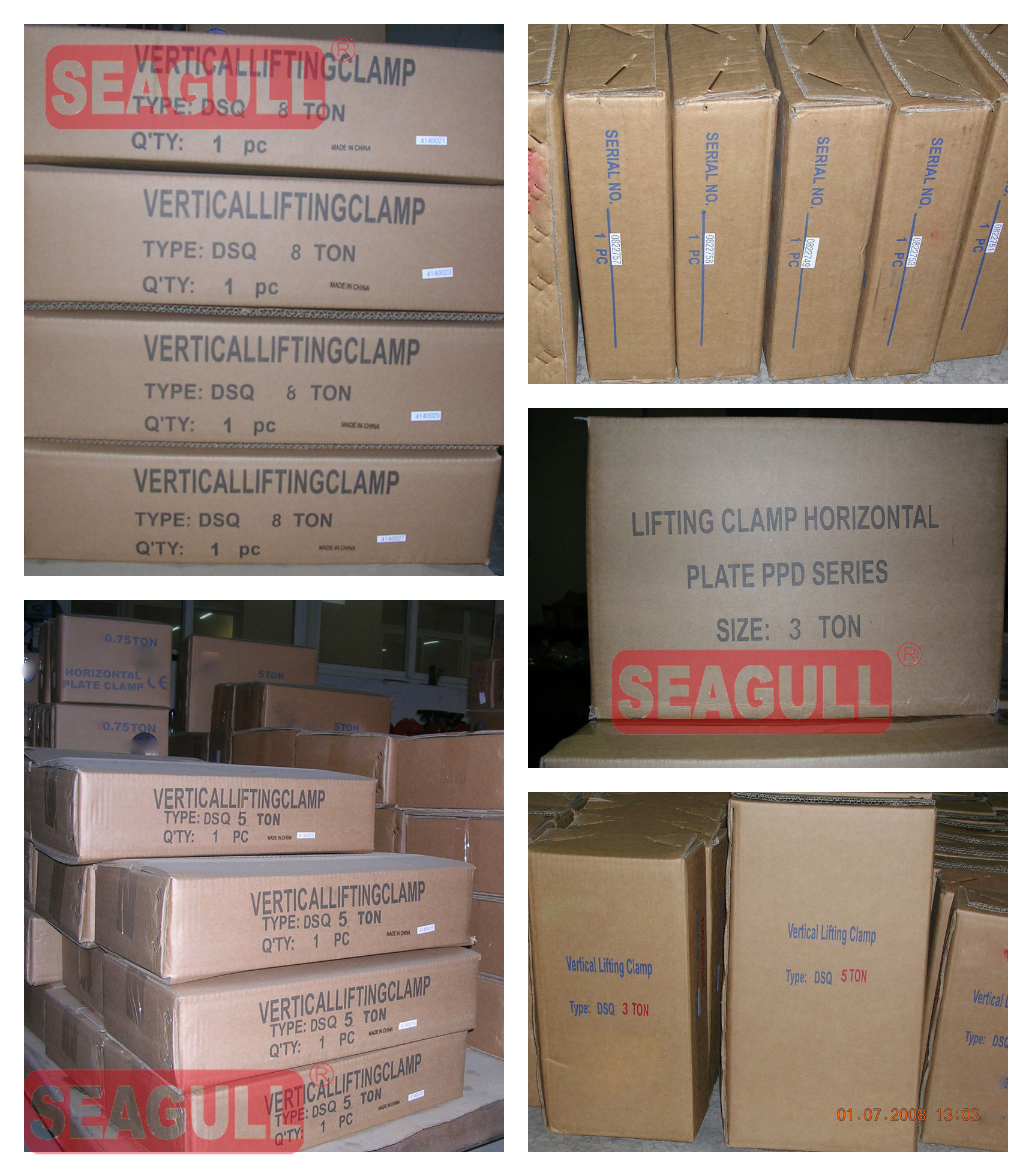

PACKING:
premier lifting tools and equipment. Our extensive portfolio includes hand chain hoists, lever hoists, electric
hoists, and lifting clamps, all crafted to perfection. Certified with ISO9001:2015 and TUV CE/GS, our products
are synonymous with quality and reliability, serving global markets such as the USA, Germany, and Japan. A
proud OEM partner for leading international brands, we export 95% of our products globally. Our commitment
to advanced testing and stringent quality control ensures unmatched performance. With over half our clientele maintaining
SEAGULL stands as your steadfast partner in delivering innovative and reliable lifting solutions tailored to
your needs.
PRODUCTION EQUIPMENT:
Q1 Manufacturer or Trading Company?
We are Manufacturer and trading company, based in ChangshuCity,Jiangsu Province. Focus: high-quality, safe lifting solutions.
Q2 Certifications?
ISO9001, CE, GS, ASME compliant. Certificates available upon request.
Q3 OEM/ODM?
Yes. Custom colors, logos, manuals,packaging.
Q4 Advantages?
Quality products, wide range, customization, competitive pricing, excellent after-sales service.
Products
Q1 Main Products?
Manual Chain Hoists, Electric Hoists, Electric Trolleys, Beam Trolleys, Beam Clamps, Lifting Clamps, Snatch Blocks, Permanent Magnet Lifters,Mechanical Jacks, Manual Winches, Webbing Slings, etc.
Q2 Manual Chain Hoist Capacity?
0.25 tons - 50 tons. Custom options available.
Q3 Chain Material?
High-strength alloy steel, heat-treated, EN818-7 compliant.
Q4 Electric Hoist Voltage/Control?
220V/380V/415V/440V,50Hz/60Hz. Hand & remote control options.
Q5 Choosing the Right Tool?
Consider load, height, environment, frequency, safety. Contact sales for assistance.
Q6 Product Catalog?
Request via contact form.
Orders&Payment
Q1 MOQ?
Varies. Different products with different MOQ. Please contact us for details.
Q2 Payment Methods?
T/T or L/C in USD/RMB/EUR.
Q3 Delivery Time?
30-60 days, but negotiable for urgent order.
Q4 Trade Terms?
FOB, CIF, CFR, negotiable
After-Sales Service
Q1 Warranty?
1 or 2 years warranty depends on different products, against defects (non-human caused).
Q2 After-Sales Support?
Contact sales representative, email
Q3 Technical Support?
Installation, debugging, maintenance assistance available.
Other
Q1 Samples?
Available on request. Fees may apply.
Q2 Become an Agent?
Contact sales team for details.
