Best Price Wire Rope Electric Hoist Manufacturers Factory for Hospital

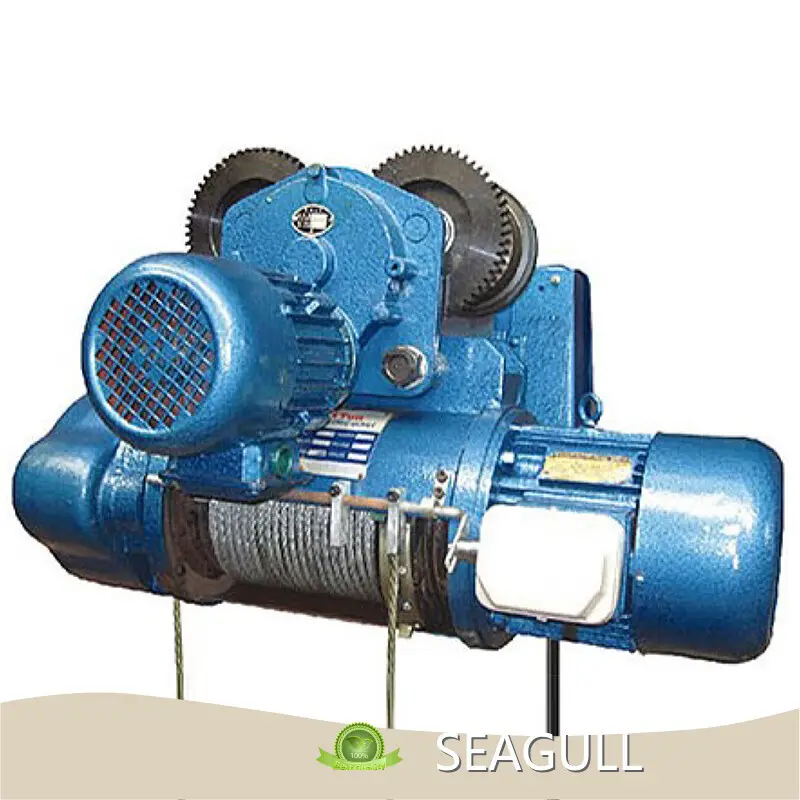

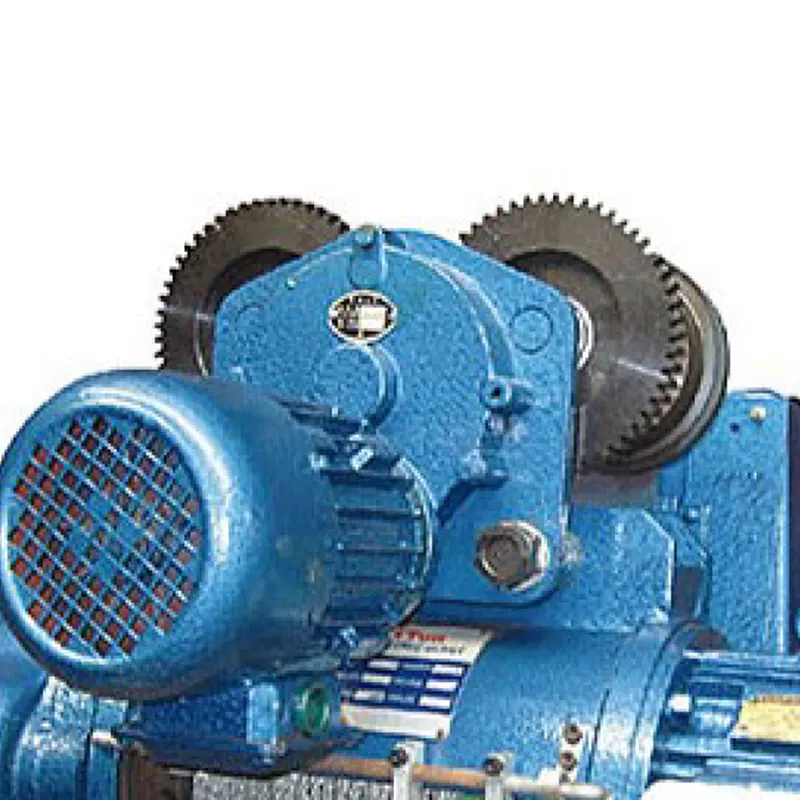

Product details of the wire rope electric hoist manufacturers
Product Introduction
The practical design of SEAGULL wire rope electric hoist manufacturers caters the taste of customers. Each product is subjected to stringent quality checks under the supervision of qualified professionals. Changshu Seagull Crane&Hoist Machinery Co.,Ltd has been sprung up as the preferred brand for wire rope electric hoist manufacturers.
Product Features
● Capacity from 0.25t to 30t.
● Lifting length from 6m to 30m (6m, 9m,12m, 18m, 24m, 30m).
● Most tensile safety hook without break.
● Compact and high efficient motor with heat protection device.
● Push button is with 36v low voltage to guarantee safety.
● Four model for the wire rope hoist.
● MD-1 Four direction movement, Double speed (With electric trolley).
● MD-2 Two direction movement, Double speed (Without electric trolley).
● CD-1 Four direction movement, Single speed (With electric trolley).
● CD-2 Two direction movement, Single speed (Without electric trolley).
● One year warranty.
Product description
|
CD(MD) 0.25t - 2t |
|
|
|
|
|
|
|
Capacity |
t |
0.25 |
0.5 |
1 |
2 |
|
|
Lifting height |
m |
3 6 9 12 |
6 9 12 18 |
6 9 12 18 24 30 |
6 9 12 18 24 30 |
|
|
Lifting speed |
m/min |
8 |
8(8/0.8) |
8(8/0.8) |
8(8/0.8) |
|
|
Running speed |
m/min |
20 |
20 |
20 |
20 |
|
|
I-Beam track modle (GB706-88) |
|
12-20b |
16-28b |
16-28b |
20a-32c |
|
|
Min. Radius |
m |
1 1 1 1 |
1.5 2 |
1.5 2 2.5 3.5 |
1.8 2 2.5 3.5 |
|
|
Motor power |
kw |
0.4 |
0.8(0.8/0.2) |
1.5(1.5/0.2) |
3(3/0.4) |
|
|
Running motor power |
kw |
0.06 |
0.2 |
0.2 |
0.4 |
|
|
L |
mm |
386 386 549 615 |
616 688 760 904 |
760 855 955 1150 1345 1540 |
820 920 1020 1220 1420 1620 |
|
|
L (MD1) |
mm |
|
626 698 770 914 |
770 865 965 1160 1355 1550 |
830 930 1030 1230 1430 1630 |
|
|
L1 |
mm |
104 104 267 333 |
318 390 462 606 |
401 499 597 793 989 1185 |
418 518 618 808 1018 1218 |
|
|
f1 |
mm |
386 |
490 |
645 |
754 |
|
|
B1 |
mm |
130 |
190 |
196 |
240 |
|
|
Φ |
mm |
4-11 |
4-15 |
4-19 |
4-23 |
|
|
b |
mm |
90 |
120 |
127 |
155 |
|
|
f |
mm |
421 432 |
550 650 |
719 810 |
856 956 |
|
|
B max |
mm |
398 415 |
897 |
897 |
935 |
|
|
kg |
33 37 41 45 |
80 85 90 95 |
130 140 157 172 186 203 |
174 190 208 232 260 284 |
|
|
CD1 Four direction movement. Single speed |
kg |
41 45 49 60 |
118 136 153 198 |
170 180 207 222 236 253 |
230 244 299 315 337 357 |
|
|
MD2 Two direction movement. Double speed |
kg |
|
88 93 98 103 |
138 148 165 180 194 211 |
184 200 218 242 270 294 |
|
|
MD1 Four direction movement. Double speed |
kg |
|
135 140 160 170 |
183 190 225 240 254 271 |
269 284 335 369 379 404 |
|
CD(MD) 3t - 10t |
|
|
|
|
|
|
Capacity |
t |
3 |
5 |
10 |
|
|
Lifting height |
m |
6 9 12 18 24 30 |
6 9 12 18 24 30 |
6 9 12 18 24 30 |
|
|
Lifting speed |
m/min |
8(8/0.8) |
8(8/0.8) |
7(7/0.7) |
|
|
Running speed |
m/min |
20 |
20 |
20 |
|
|
I-Beam track modle (GB706-88) |
|
20a-32c |
25a-63c |
25a-63c |
|
|
Min. Radius |
m |
1.8 2 3 4 |
1.8 2 2.5 3.5 |
2.5 3 3.5 4.5 6 7.2 |
|
|
Motor power |
kw |
4.5(1.5/0.4) |
7.5(7.5/0.8) |
13(13/1.5) |
|
|
Running motor power |
kw |
0.4 |
0.8 |
2x0.8 |
|
|
L |
mm |
930 1030 1136 1342 1548 1754 |
1052 1157 1262 1472 1682 1892 |
1501 1682 1863 2225 2587 2949 |
|
|
L (MD1) |
mm |
940 1040 1146 1352 1558 1764 |
1062 1167 1272 1482 1692 1902 |
2049 2230 2411 2773 3135 3497 |
|
|
L1 |
mm |
451 554 657 863 1069 1275 |
485 590 695 905 1115 1325 |
849 1030 1211 1573 1935 2297 |
|
|
f1 |
mm |
866 |
1014 |
1081 |
|
|
B1 |
mm |
264 |
320 |
376 |
|
|
Φ |
mm |
4-25 |
4-32 |
4-38 |
|
|
b |
mm |
175 |
203 |
255 |
|
|
f |
mm |
961 1064 |
1177 1327 |
1350 |
|
|
B max |
mm |
935 |
1067 |
1067 |
|
|
|
kg |
234 250 276 310 344 374 |
392 410 431 476 505 545 |
764 820 874 1001 1090 1174 |
|
|
CD1 Four direction movement.Single speed |
kg |
308 330 392 408 434 472 |
494 517 601 648 691 735 |
1010 1066 1120 1232 1336 1440 |
|
|
MD2 Two direction movement.Double speed |
kg |
244 260 286 320 354 384 |
417 435 458 501 530 570 |
824 880 934 1061 1150 1234 |
|
|
MD1 Four direction movement.Double speed |
kg |
323 335 395 429 463 493 |
530 553 594 641 684 728 |
1070 1126 1180 1292 1396 1500 |
TECHNICAL PARAMETERS
Company Feature
• Our company has had years of experience in R&D and production since it was founded in br /> • SEAGULL's current sales network covers from major cities to regions in China. In the future, we will strive to open up a broader overseas market.
• Under the influence of people-oriented culture, our company has established an excellent team to promote development. The team members are positive, innovative and dedicated.
• SEAGULL's location has unique geographical advantages, complete supporting facilities, and traffic convenience.
SEAGULL focuses on producing all kinds of quality electric hoist,Electric chain hoist,Electric Wire Rope Hoist,chain block,lever block,snatch block. If you have any interest, your presence, guidance and cooperation are welcome.
