Lever Block Price Fast Delivery Factory Price
Product details of the lever block price
Product Introduction
SEAGULL lever block price is fabricated using top grade raw materials under the strict supervision of our quality experts. Compared with competitive products, this product possesses a combination of excellent performance and long service life. Advanced technology and first-class equipment allow Changshu Seagull Crane&Hoist Machinery Co.,Ltd to be confident that we can guarantee prompt delivery and guarantee quality.
Production Description

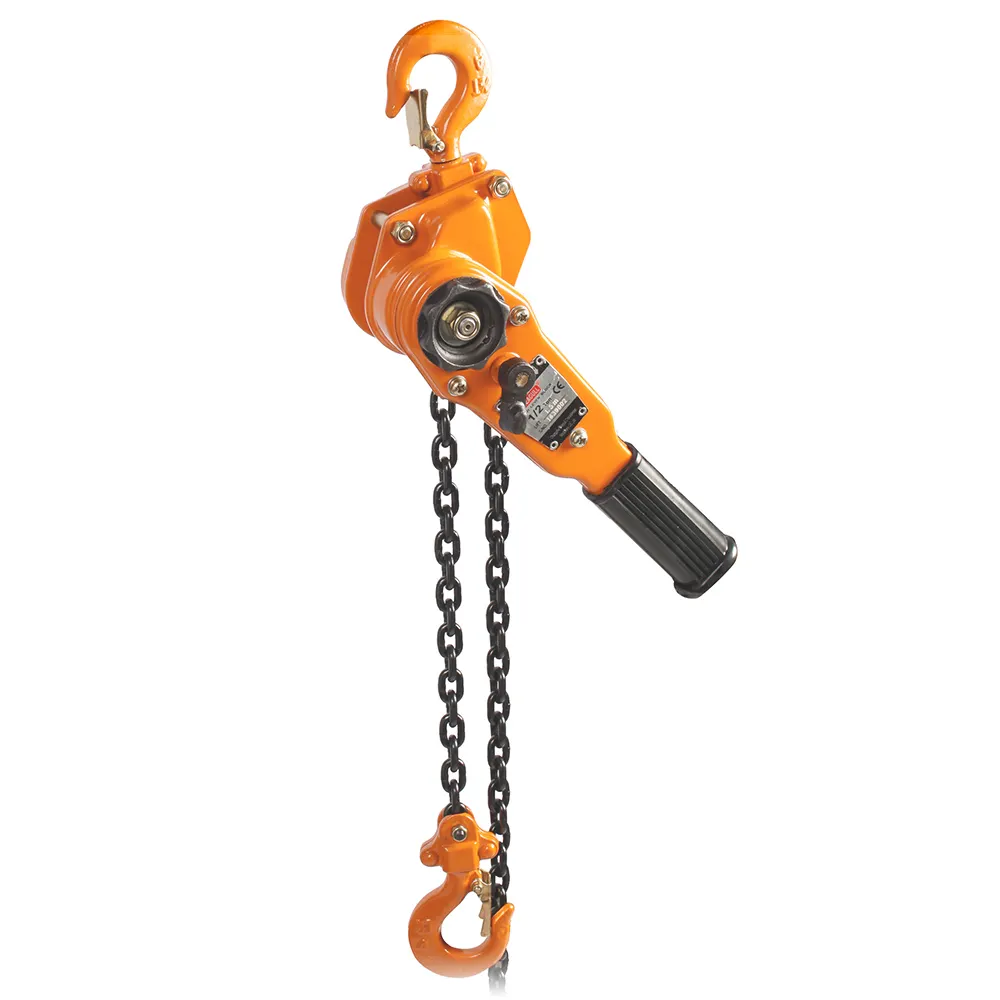

HSH-V type.
*Capacity 0.5T.
*Bearings inside load chain sprocket increase mechanical efficiency
*Chain guides provide smooth chain operation.
*lightweight steel construction with durable powder coat finish.
*Drop forged hooks and hook holders, heat treated to ensure the safety and durability.
*Gear assembly provide smooth operation by little hand efforts.
*T80 grade high tensile lifting chain make more effective.
*CE CERTIFIED.
*One year guarantee.
|
HSH-V-LEVER BLOCKS |
|||||||||
|
Model |
HSH-V2.5 |
HSH-V5 |
HSH-V7.5 |
HSH-V10 |
HSH-V15 |
HSH-V20 |
HSH-V30 |
HSH-V60 |
HSH-V90 |
|
Rated load(T) |
0.25 |
0.5 |
0.75 |
1 |
1.5 |
2 |
3 |
6 |
9 |
|
Test load(T) |
0.375 |
0.75 |
1.125 |
1.5 |
2.25 |
3 |
4.5 |
9 |
13.5 |
|
Standard lift(m) |
1 |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
|
Min. distance between two hooks(mm) |
205 |
260 |
295 |
295 |
335 |
385 |
450 |
615 |
720 |
|
Efforts required at capacity(N) |
217 |
303 |
140 |
185 |
234 |
251 |
363 |
370 |
375 |
|
No. of load chains |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
2 |
3 |
|
Diameter of load chain(mm) |
4 |
5 |
6 |
6 |
7.1 |
8 |
10 |
10 |
10 |
|
Dimensions(mm) A B C D E |
92 75 205 153 17 |
110 82 260 261 23 |
152 128 295 256 26 |
152 128 295 256 26 |
175 148 335 368 30 |
175 160 385 368 33 |
195 181 450 368 34 |
195 232 615 368 47 |
195 366 720 368 64 |
|
Net weight(kg) |
1.85 |
4.6 |
7.7 |
8 |
10.6 |
14.8 |
20 |
28 |
46 |
