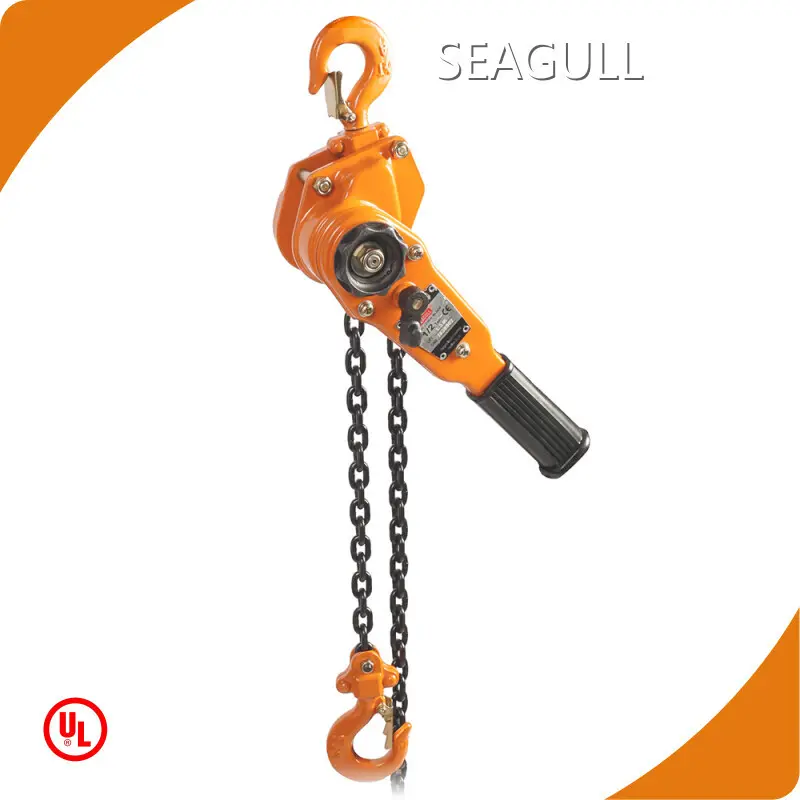

Mini Lever Block - for Petrochemical - SEAGULL
Product details of the mini lever block
Quick Overview
SEAGULL mini lever block combines the advantages of a conventional process and modern production. Multiples functions for mini lever block is provided for multiple usages. Our mini lever block has been widely used in many industries. In the fierce market competition, Changshu Seagull Crane&Hoist Machinery Co.,Ltd has won the recognition of domestic and international markets with mini lever block.
Product Description
SEAGULL's technical level is higher than its peers. Compared with peer products, the mini lever block produced by us has the following highlights.
Production Description
HSH-V type.
*Capacity 0.5T.
*Bearings inside load chain sprocket increase mechanical efficiency
*Chain guides provide smooth chain operation.
*lightweight steel construction with durable powder coat finish.
*Drop forged hooks and hook holders, heat treated to ensure the safety and durability.
*Gear assembly provide smooth operation by little hand efforts.
*T80 grade high tensile lifting chain make more effective.
*CE CERTIFIED.
*One year guarantee.
|
HSH-V-LEVER BLOCKS |
|||||||||
|
Model |
HSH-V2.5 |
HSH-V5 |
HSH-V7.5 |
HSH-V10 |
HSH-V15 |
HSH-V20 |
HSH-V30 |
HSH-V60 |
HSH-V90 |
|
Rated load(T) |
0.25 |
0.5 |
0.75 |
1 |
1.5 |
2 |
3 |
6 |
9 |
|
Test load(T) |
0.375 |
0.75 |
1.125 |
1.5 |
2.25 |
3 |
4.5 |
9 |
13.5 |
|
Standard lift(m) |
1 |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
|
Min. distance between two hooks(mm) |
205 |
260 |
295 |
295 |
335 |
385 |
450 |
615 |
720 |
|
Efforts required at capacity(N) |
217 |
303 |
140 |
185 |
234 |
251 |
363 |
370 |
375 |
|
No. of load chains |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
2 |
3 |
|
Diameter of load chain(mm) |
4 |
5 |
6 |
6 |
7.1 |
8 |
10 |
10 |
10 |
|
Dimensions(mm) A B C D E |
92 75 205 153 17 |
110 82 260 261 23 |
152 128 295 256 26 |
152 128 295 256 26 |
175 148 335 368 30 |
175 160 385 368 33 |
195 181 450 368 34 |
195 232 615 368 47 |
195 366 720 368 64 |
|
Net weight(kg) |
1.85 |
4.6 |
7.7 |
8 |
10.6 |
14.8 |
20 |
28 |
46 |
Company Introduction
Changshu Seagull Crane&Hoist Machinery Co.,Ltd has its own mini lever block production base, the main products are mini lever block. Changshu Seagull Crane has implemented advanced technology to achieve the standard of producing mini lever block. Changshu Seagull Crane&Hoist Machinery Co.,Ltd sincerely hopes our mini lever block can bring great value to our customers. Check it!
Welcome everyone to come for consultation.
