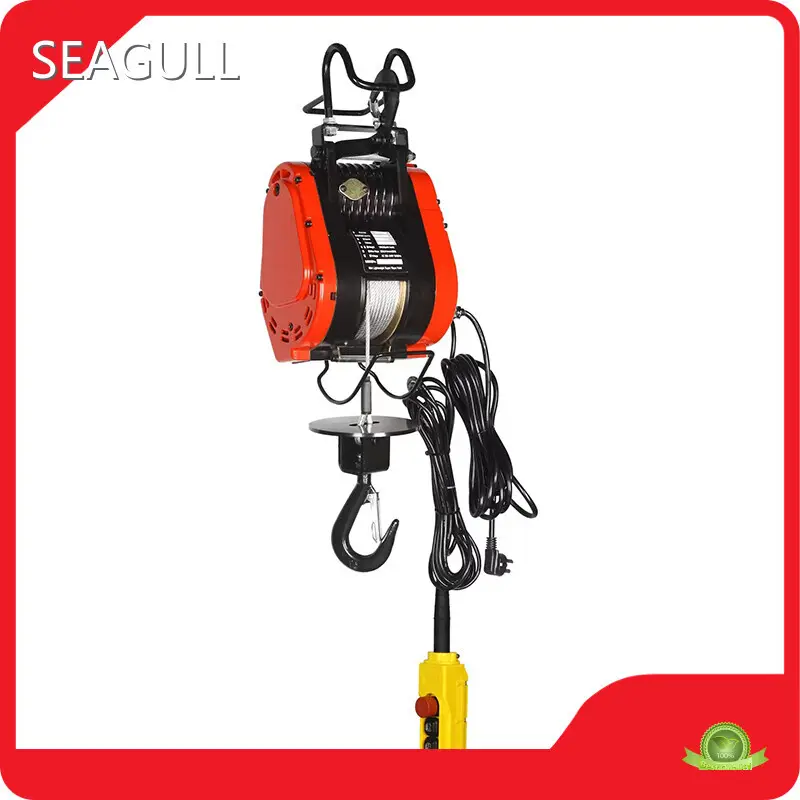

SEAGULL Electric Hoist on Trolley with Custom Services
Product details of the electric hoist on trolley
Quick Detail
SEAGULL electric hoist on trolley has met the industrial design requirements. electric hoist on trolley has novel traits and advantages. Our electric hoist on trolley is available in a wide range of applications. SEAGULL now has kept a long-term friendly relationships with our customers for years of experience.
Product Description
SEAGULL's electric hoist on trolley has been further improved based on advanced technology, as reflected in the following aspects.
Product Advantages
● Small size, light weight, easy to carry.
● Hanging end is double insurance, you can ensure the stability of the installation.
● Shell is made of aluminum, heat dissipation is better.
● Enhance the speed, the general wire rope hoist lifting speed is 8m / min, this electric hoist to enhance the speed up to 23m / min.
● Over-roll prevention device: When the cable is wound up, the power will be cut off automatically and immediately stop automatically to prevent the collision.
● Reversal prevention device: With the function of preventing reverse, it automatically stops when the reversal occurs.
● Double safety brake device: The motor as a power, motor instantaneous deceleration when power is off, at the same time mechanical ratchet brake fully automatic, so there will be no brake failure, greatly enhance the use of safety.
Product description
|
Model |
SK-80 |
SK-160 |
SK-190 |
SK-230 |
SK-300 |
|
|
Rated Load(kg) |
80 |
160 |
190 |
230 |
300 |
|
|
Speed(m/min) |
The outermost |
32 |
23 |
18 |
14 |
14 |
|
Brush motor |
Horsepower (W) |
600 |
1200 |
1250 |
1300 |
1500 |
|
Curren(A) |
8 |
12 |
12 |
12.5 |
13 |
|
|
Brakes |
motor |
Resistive |
||||
|
Machinery |
Double ratchet |
|||||
|
Standard lift |
29 |
29 |
29 |
29 |
29 |
|
|
Wire rope φmm*m |
4*30 |
5*30 |
5*30 |
5*30 |
5*30 |
|
|
Standard accessories |
power cable |
2mm² * 3 cores * 4.5m |
||||
|
Switch line |
2mm² * 5 cores * 7m |
|||||
|
Hammer weight hook |
K-10 |
|||||
|
Net weight kg |
8 |
17 |
17 |
18 |
18 |
|
|
Gross weightkg |
16 |
24 |
24 |
25 |
26 |
|
Product Description
This electric hoist can be used in factories , mines, agriture, electric power, construction buildingsite, dock, and warehouse for installing the machines, lifting the cargoes, loading and unloading the trucks.
Company Information
Changshu Seagull Crane&Hoist Machinery Co.,Ltd is a comprehensive company integrating R&D, production, processing, marketing and service. And the key products are electric hoist,Electric chain hoist,Electric Wire Rope Hoist,chain block,lever block,snatch block. SEAGULL attaches great importance to quality and credit during the business management. We follow the enterprise spirit to be optimistic and active, positive and aspirant, innovative and developing. In order to provide quality products, we continuously improve our core competitiveness and implement the development strategy of scale-business. It is our honor to bring a relaxing buying experience to customers. SEAGULL has a research and development team composed of senior technical designers and engineers in the industry. We focus on product design and development with the concept of 'quality first, technological innovation, novel design'. In addition to creating excellent electric hoist,Electric chain hoist,Electric Wire Rope Hoist,chain block,lever block,snatch block, SEAGULL is also able to provide comprehensive and reasonable solutions for customers.
We provide you with high-quality products and look forward to your inquiry.
