Chinese Factory High-Quality 0.5-10t Electric Chain Hoist with Single/Dual/Variable Speed with Good Price
Place of Origin: CHINA
Brand Name: SEAGULL
Certification: GS/ CE
Model Number: 0.5-10Ton
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: Negotiation
Packaging Details: Packed in carton firstly, and then reinforced with steel case for outer packing
Delivery Time: 30 working days after received your payment
Supply Ability: 150000 pcs per year
Brand Name: SEAGULL
Certification: GS/ CE
Model Number: 0.5-10Ton
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: Negotiation
Packaging Details: Packed in carton firstly, and then reinforced with steel case for outer packing
Delivery Time: 30 working days after received your payment
Supply Ability: 150000 pcs per year
5.0
like
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
0.5-10T heavy-duty electric hoist SGW

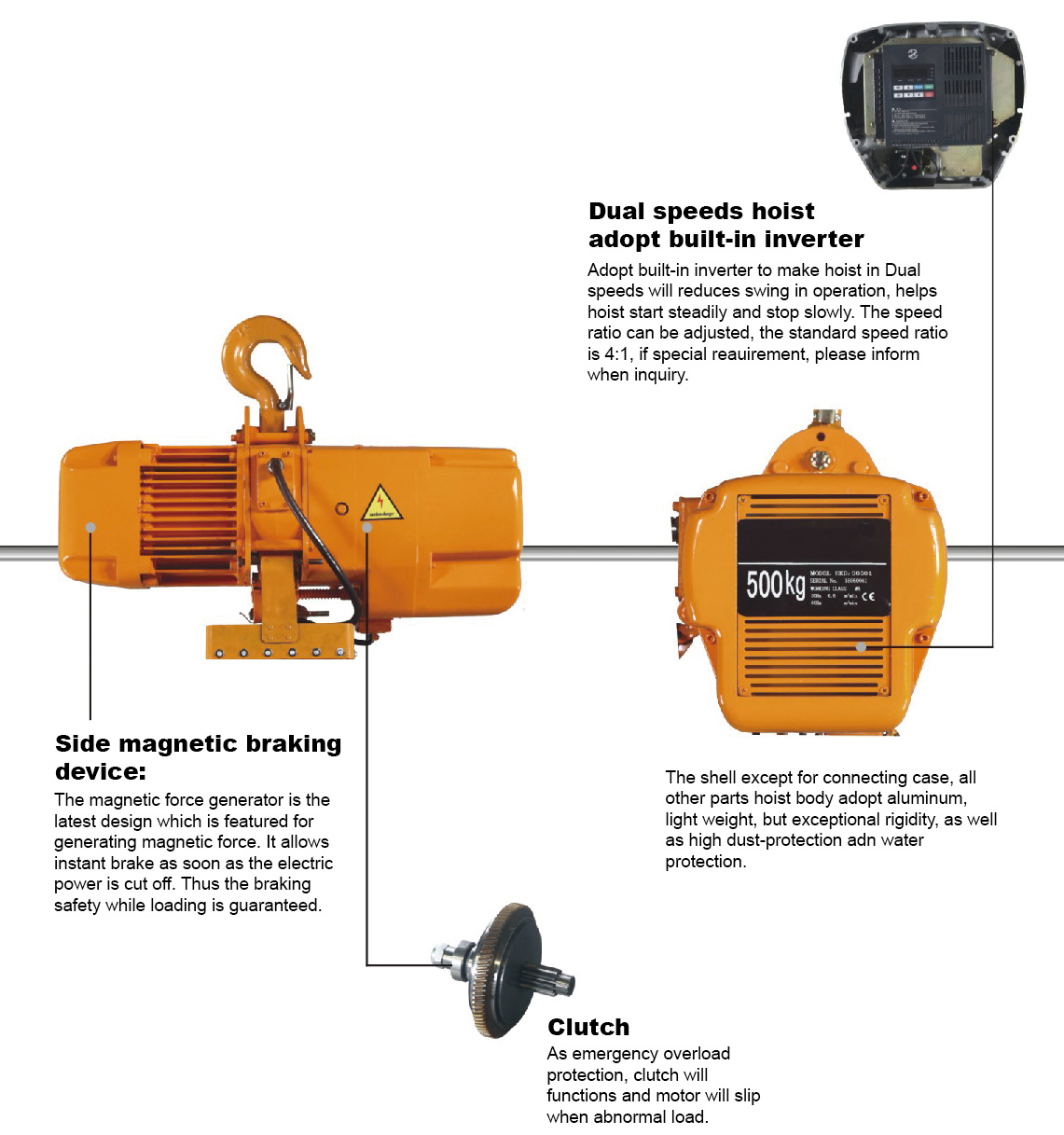

Product Features:
Emergency Overload Clutch: Automatically disengages motor during abnormal loads to prevent damage.
Phase Sequence Protector: Blocks circuit operation if power wiring is incorrect.

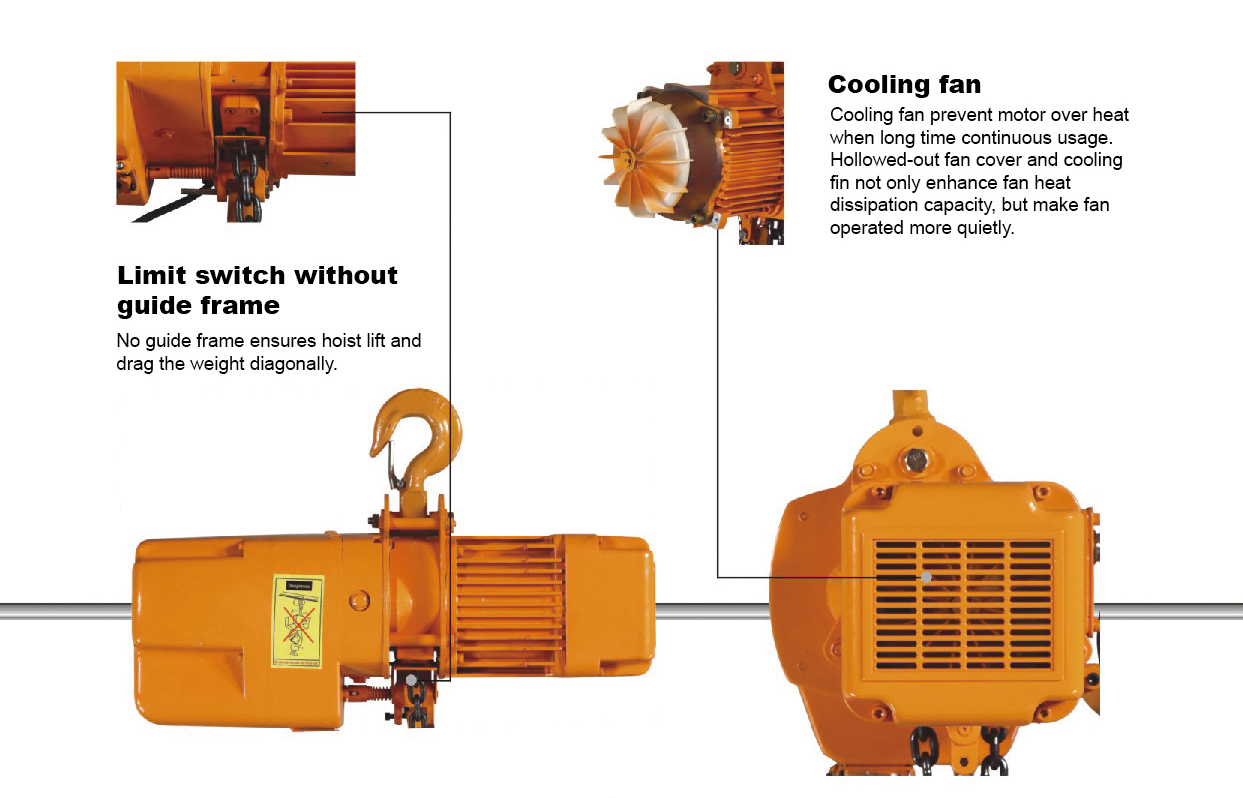

Limit Switch: Stops motor automatically to prevent chain over-travel for safety.
Magnetic Brake: Instantly activates during power failure for immediate stopping.

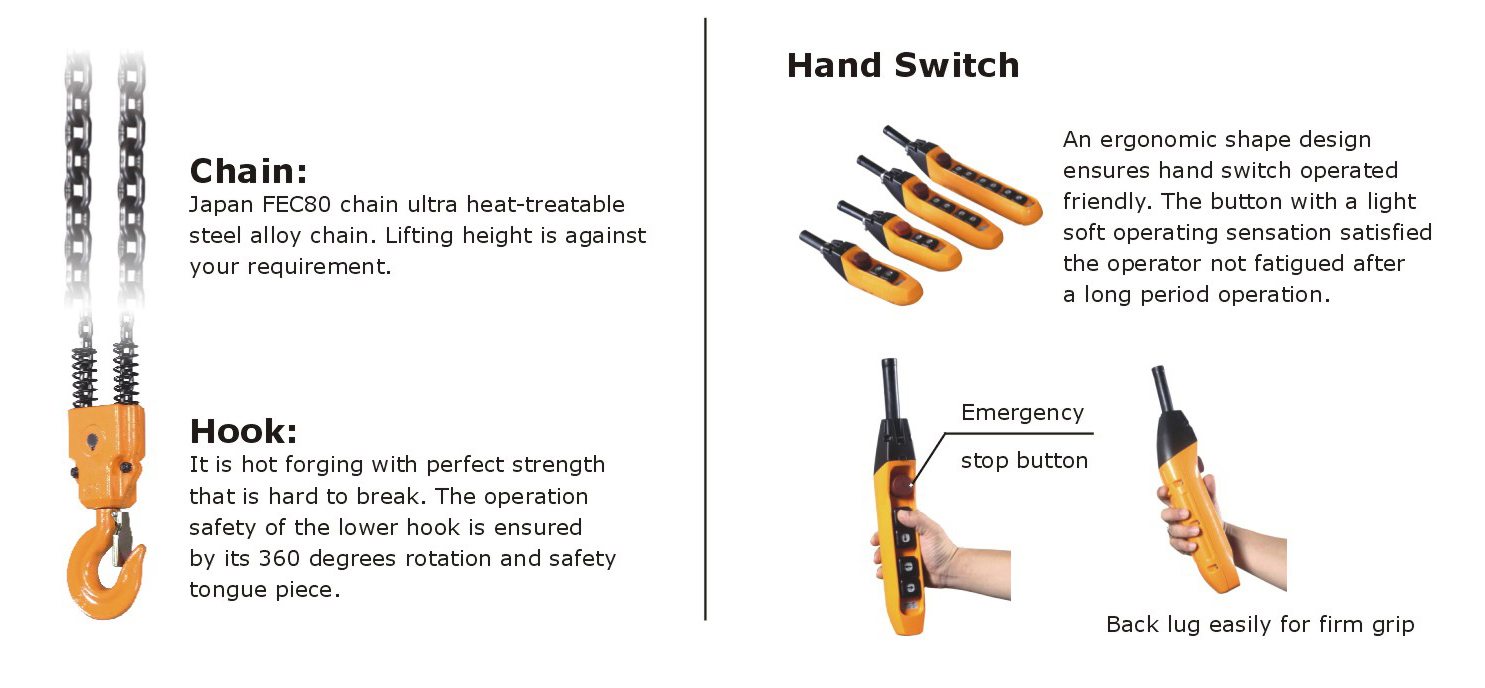

High-Strength Chains: Japanese FEC80 heat-treated alloy chains with customizable lifting height.
Emergency Stop Button: Instantly cuts motor power in emergencies.
Adjustable Control Voltage: Options from 24V to 110V reduce leakage risks.
Optional Add-ons: Wireless remote control and overheat protector available.
PRODUCT DETAILS:
TECHNICAL PARAMETER:
| Lifting Motor | ||||||||||||
| Model | Rated load (Ton) | Standard Lifting Height(m) | Lifting Speed (m/min)50HZ | Power (kw) | Rotation Speed(r/min) | Phases | Voltage (v) | Frequency (HZ) | Chain Specification(mm) | Test Load (t) | Weight (kg) | Weight Added With 1m Higher(kg) |
| SGW+P-00501SF | 0.5 | 3 | 6.8&1.7 | 0.75 | 1440&360 | 3 | 200-600 | 50/60 | 6.3*19.1 | 0.625 | 47 | 0.8 |
| SGW+P-01001SF | 1 | 3 | 6.6&1.65 | 1.5 | 1440&360 | 3 | 200-600 | 50/60 | 7.1*21 | 1.25 | 64 | 1.1 |
| SGW+P-01002SF | 1 | 3 | 3.4&0.85 | 0.75 | 1440&360 | 3 | 200-600 | 50/60 | 6.3*19.1 | 1.25 | 55 | 1.6 |
| SGW+P-01501SF | 1.5 | 3 | 8.8&2.2 | 3 | 1440&360 | 3 | 200-600 | 50/60 | 10*30 | 1.875 | 120 | 2.3 |
| SGW+P-02001SF | 2 | 3 | 6.6&1.65 | 3 | 1440&360 | 3 | 200-600 | 50/60 | 10*30 | 2.5 | 120 | 2.3 |
| SGW+P-02002SF | 2 | 3 | 3.3&0.82 | 1.5 | 1440&360 | 3 | 200-600 | 50/60 | 7.1*21 | 2.5 | 80 | 3.2 |
| SGW+P-02501SF | 2.5 | 3 | 5.4&1.35 | 3 | 1440&360 | 3 | 200-600 | 50/60 | 11.2*34 | 3.125 | 127 | 2.6 |
| SGW+P-03001SF | 3 | 3 | 5.4&1.35 | 3 | 1440&360 | 3 | 200-600 | 50/60 | 11.2*34 | 3.75 | 127 | 2.6 |
| SGW+P-03002SF | 3 | 3 | 4.4&1.1 | 3 | 1440&360 | 3 | 200-600 | 50/60 | 10*30 | 3.75 | 134 | 4.6 |
| SGW+P-05002SF | 5 | 3 | 2.7&0.67 | 3 | 1440&360 | 3 | 200-600 | 50/60 | 11.2*34 | 6.25 | 155 | 5.2 |
| SGW+P-10004SF | 10 | 3 | 2.7&0.67 | 3*2 | 1440&360 | 3 | 200-600 | 50/60 | 11.2*34 | 12.5 | 355 | 10.8 |
SGW+PLUS ELECTRIC HOIST SIZE SPECIFICATION ![Chinese Factory High-Quality 0.5-10t Electric Chain Hoist with Single/Dual/Variable Speed with Good Price 12]()
| Lifting Motor | Trolley motor | ||||||||||||||
| Model | Rated load (Ton) | Standard Lifting Height(m) | Lifting Speed (m/min)50HZ | Power (kw) | Rotation Speed(r/min) | Phases | Voltage (v) | Frequency (HZ) | Power (kw) | Rotation Speed(r/min) | Trolley Speed(m/min) | I-Beam | Test Load (t) | Weight (kg) | Weight Added With 1m Higher(kg) |
| SGW+P-00501SF | 0.5 | 3 | 6.8&1.7 | 0.75 | 1440&360 | 3 | 200-600 | 50/60 | 0.4&0.1 | 2880&720 | 5&20 | 58-153 | 0.625 | 87 | 0.8 |
| SGW+P-01001SF | 1 | 3 | 6.6&1.65 | 1.5 | 1440&360 | 3 | 200-600 | 50/60 | 0.4&0.1 | 2880&720 | 5&20 | 58-153 | 1.25 | 104 | 1.1 |
| SGW+P-01002SF | 1 | 3 | 3.4&0.85 | 0.75 | 1440&360 | 3 | 200-600 | 50/60 | 0.4&0.1 | 2880&720 | 5&20 | 58-153 | 1.25 | 95 | 1.6 |
| SGW+P-01501SF | 1.5 | 3 | 8.8&2.2 | 3 | 1440&360 | 3 | 200-600 | 50/60 | 0.4&0.1 | 2880&720 | 5&20 | 58-153 | 1.875 | 168 | 2.3 |
| SGW+P-02001SF | 2 | 3 | 6.6&1.65 | 3 | 1440&360 | 3 | 200-600 | 50/60 | 0.4&0.1 | 2880&720 | 5&20 | 82-178 | 2.5 | 168 | 2.3 |
| SGW+P-02002SF | 2 | 3 | 3.3&0.82 | 1.5 | 1440&360 | 3 | 200-600 | 50/60 | 0.4&0.1 | 2880&720 | 5&20 | 82-178 | 2.5 | 128 | 3.2 |
| SGW+P-02501SF | 2.5 | 3 | 5.4&1.35 | 3 | 1440&360 | 3 | 200-600 | 50/60 | 0.75&0.18 | 2880&720 | 5&20 | 82-178 | 3.125 | 188 | 2.6 |
| SGW+P-03001SF | 3 | 3 | 5.4&1.35 | 3 | 1440&360 | 3 | 200-600 | 50/60 | 0.75&0.18 | 2880&720 | 5&20 | 100-178 | 3.75 | 188 | 2.6 |
| SGW+P-03002SF | 3 | 3 | 4.4&1.1 | 3 | 1440&360 | 3 | 200-600 | 50/60 | 0.75&0.18 | 2880&720 | 5&20 | 100-178 | 3.75 | 195 | 4.6 |
| SGW+P-05002SF | 5 | 3 | 2.7&0.67 | 3 | 1440&360 | 3 | 200-600 | 50/60 | 0.75&0.18 | 2880&720 | 5&20 | 100-178 | 6.25 | 240 | 5.2 |
| SGW+P-10004SF | 10 | 3 | 2.7&0.67 | 3*2 | 1440&360 | 3 | 200-600 | 50/60 | 0.75&0.18 | 2880&720 | 5&20 | 150-220 | 12.5 | 495 | 10.8 |
SGW+PLUS ELECTRIC HOIST WITH TROLLEY SIZE SPECIFICATION
| Model | Rated load (Ton) | H (mm) | A (mm) | B (mm) | D (mm) | E (mm) | I (mm) | J (mm) | K (mm) | L (mm) | M (mm) | N (mm) | Dia*Chain fall |
| SGW+P-00501SF | 0.5 | 455 | 566 | 266 | 285 | 165 | 35 | 27 | 34 | 25 | 17 | 17 | 6.3*1 |
| SGW+P-01001SF | 1 | 520 | 627 | 302 | 300 | 176 | 42 | 32 | 41 | 32 | 24 | 24 | 7.1*1 |
| SGW+P-01002SF | 1 | 490 | 566 | 266 | 285 | 165 | 35 | 27 | 35 | 25 | 24 | 24 | 6.3*2 |
| SGW+P-01501SF | 1.5 | 640 | 733 | 343 | 430 | 256 | 48 | 38 | 49 | 40 | 28 | 28 | 10*1 |
| SGW+P-02001SF | 2 | 640 | 733 | 343 | 430 | 256 | 48 | 38 | 49 | 40 | 28 | 28 | 10*1 |
| SGW+P-02002SF | 2 | 705 | 627 | 302 | 300 | 236 | 48 | 38 | 49 | 40 | 28 | 28 | 7.1*2 |
| SGW+P-02501SF | 2.5 | 685 | 733 | 343 | 430 | 265 | 59 | 48 | 59 | 48 | 34 | 34 | 11.2*1 |
| SGW+P-03001SF | 3 | 685 | 733 | 343 | 430 | 265 | 59 | 48 | 59 | 48 | 34 | 34 | 11.2*1 |
| SGW+P-03002SF | 3 | 790 | 733 | 343 | 430 | 320 | 59 | 48 | 59 | 48 | 34 | 34 | 10*2 |
| SGW+P-05002SF | 5 | 870 | 733 | 343 | 430 | 325 | 59 | 48 | 60 | 48 | 42 | 42 | 11.2*2 |
| SGW+P-10004SF | 10 | 1270 | 780 | 390 | *** | 890 | 85 | 70 | 85 | 70 | 104 | 60 | 11.2*4 |
APPLICATION:| Model | Rated load (Ton) | H (mm) | A (mm) | B (mm) | D (mm) | E (mm) | I (mm) | K (mm) | L (mm) | N (mm) | W (mm) | U (mm) | R (mm) | T (mm) | Dia*Chain fall |
| SGW+P-00501SF | 0.5 | 525 | 566 | 266 | 285 | 165 | 31 | 34 | 25 | 17 | 206 | 111 | 142 | 276 | 6.3*1 |
| SGW+P-01001SF | 1 | 535 | 627 | 302 | 300 | 176 | 31 | 41 | 32 | 24 | 206 | 111 | 142 | 276 | 7.1*1 |
| SGW+P-01002SF | 1 | 565 | 566 | 266 | 285 | 165 | 31 | 35 | 25 | 24 | 206 | 111 | 142 | 276 | 6.3*2 |
| SGW+P-01501SF | 1.5 | 610 | 733 | 343 | 430 | 265 | 36 | 49 | 40 | 28 | 237 | 127 | 142 | 276 | 10*1 |
| SGW+P-02001SF | 2 | 610 | 733 | 343 | 430 | 265 | 36 | 49 | 40 | 28 | 237 | 127 | 142 | 276 | 10*1 |
| SGW+P-02002SF | 2 | 685 | 627 | 302 | 300 | 236 | 36 | 49 | 40 | 28 | 237 | 127 | 142 | 276 | 7.1*2 |
| SGW+P-02501SF | 2.5 | 670 | 733 | 343 | 430 | 265 | 43 | 59 | 48 | 34 | 265 | 140 | 142 | 315 | 11.2*1 |
| SGW+P-03001SF | 3 | 670 | 733 | 343 | 430 | 265 | 43 | 59 | 48 | 34 | 265 | 140 | 142 | 315 | 11.2*1 |
| SGW+P-03002SF | 3 | 770 | 733 | 343 | 430 | 320 | 43 | 59 | 48 | 34 | 265 | 140 | 142 | 315 | 10*2 |
| SGW+P-05002SF | 5 | 855 | 733 | 343 | 430 | 325 | 54 | 60 | 48 | 42 | 296 | 156 | 142 | 315 | 11.2*2 |
| SGW+P-10004SF | 10 | 1060 | 780 | 390 | ** | 890 | 70 | 85 | 70 | 60 | 366 | 191 | 231 | 142 | 11.2*4 |
SPARE PARTS STORAGE ：
PACKING:
Company Profile
Since 1986, Changshu Seagull Crane&Hoist Machinery Co., Ltd. has been at the forefront of manufacturing
premier lifting tools and equipment. Our extensive portfolio includes hand chain hoists, lever hoists, electric
hoists, and lifting clamps, all crafted to perfection. Certified with ISO9001:2015 and TUV CE/GS, our products
are synonymous with quality and reliability, serving global markets such as the USA, Germany, and Japan. A
proud OEM partner for leading international brands, we export 95% of our products globally. Our commitment
to advanced testing and stringent quality control ensures unmatched performance. With over half our clientele maintaining
premier lifting tools and equipment. Our extensive portfolio includes hand chain hoists, lever hoists, electric
hoists, and lifting clamps, all crafted to perfection. Certified with ISO9001:2015 and TUV CE/GS, our products
are synonymous with quality and reliability, serving global markets such as the USA, Germany, and Japan. A
proud OEM partner for leading international brands, we export 95% of our products globally. Our commitment
to advanced testing and stringent quality control ensures unmatched performance. With over half our clientele maintaining
a decade-long partnership, we are celebrated for our steadfast quality and exceptional service.
SEAGULL stands as your steadfast partner in delivering innovative and reliable lifting solutions tailored to
your needs.
SEAGULL stands as your steadfast partner in delivering innovative and reliable lifting solutions tailored to
your needs.
PRODUCTION EQUIPMENT:
QUALITY CONTROL:
FAQ
About US
Q1 Manufacturer or Trading Company?
We are Manufacturer and trading company, based in ChangshuCity,Jiangsu Province. Focus: high-quality, safe lifting solutions.
Q2 Certifications?
ISO9001, CE, GS, ASME compliant. Certificates available upon request.
Q3 OEM/ODM?
Yes. Custom colors, logos, manuals,packaging.
Q4 Advantages?
Quality products, wide range, customization, competitive pricing, excellent after-sales service.
Products
Q1 Main Products?
Manual Chain Hoists, Electric Hoists, Electric Trolleys, Beam Trolleys, Beam Clamps, Lifting Clamps, Snatch Blocks, Permanent Magnet Lifters,Mechanical Jacks, Manual Winches, Webbing Slings, etc.
Q2 Manual Chain Hoist Capacity?
0.25 tons - 50 tons. Custom options available.
Q3 Chain Material?
High-strength alloy steel, heat-treated, EN818-7 compliant.
Q4 Electric Hoist Voltage/Control?
220V/380V/415V/440V,50Hz/60Hz. Hand & remote control options.
Q5 Choosing the Right Tool?
Consider load, height, environment, frequency, safety. Contact sales for assistance.
Q6 Product Catalog?
Request via contact form.
Orders&Payment
Q1 MOQ?
Varies. Different products with different MOQ. Please contact us for details.
Q2 Payment Methods?
T/T or L/C in USD/RMB/EUR.
Q3 Delivery Time?
30-60 days, but negotiable for urgent order.
Q4 Trade Terms?
FOB, CIF, CFR, negotiable
After-Sales Service
Q1 Warranty?
1 or 2 years warranty depends on different products, against defects (non-human caused).
Q2 After-Sales Support?
Contact sales representative, email
Q3 Technical Support?
Installation, debugging, maintenance assistance available.
Other
Q1 Samples?
Available on request. Fees may apply.
Q2 Become an Agent?
Contact sales team for details.
Q1 Manufacturer or Trading Company?
We are Manufacturer and trading company, based in ChangshuCity,Jiangsu Province. Focus: high-quality, safe lifting solutions.
Q2 Certifications?
ISO9001, CE, GS, ASME compliant. Certificates available upon request.
Q3 OEM/ODM?
Yes. Custom colors, logos, manuals,packaging.
Q4 Advantages?
Quality products, wide range, customization, competitive pricing, excellent after-sales service.
Products
Q1 Main Products?
Manual Chain Hoists, Electric Hoists, Electric Trolleys, Beam Trolleys, Beam Clamps, Lifting Clamps, Snatch Blocks, Permanent Magnet Lifters,Mechanical Jacks, Manual Winches, Webbing Slings, etc.
Q2 Manual Chain Hoist Capacity?
0.25 tons - 50 tons. Custom options available.
Q3 Chain Material?
High-strength alloy steel, heat-treated, EN818-7 compliant.
Q4 Electric Hoist Voltage/Control?
220V/380V/415V/440V,50Hz/60Hz. Hand & remote control options.
Q5 Choosing the Right Tool?
Consider load, height, environment, frequency, safety. Contact sales for assistance.
Q6 Product Catalog?
Request via contact form.
Orders&Payment
Q1 MOQ?
Varies. Different products with different MOQ. Please contact us for details.
Q2 Payment Methods?
T/T or L/C in USD/RMB/EUR.
Q3 Delivery Time?
30-60 days, but negotiable for urgent order.
Q4 Trade Terms?
FOB, CIF, CFR, negotiable
After-Sales Service
Q1 Warranty?
1 or 2 years warranty depends on different products, against defects (non-human caused).
Q2 After-Sales Support?
Contact sales representative, email
Q3 Technical Support?
Installation, debugging, maintenance assistance available.
Other
Q1 Samples?
Available on request. Fees may apply.
Q2 Become an Agent?
Contact sales team for details.
